| Category | Feature & specification | Description |

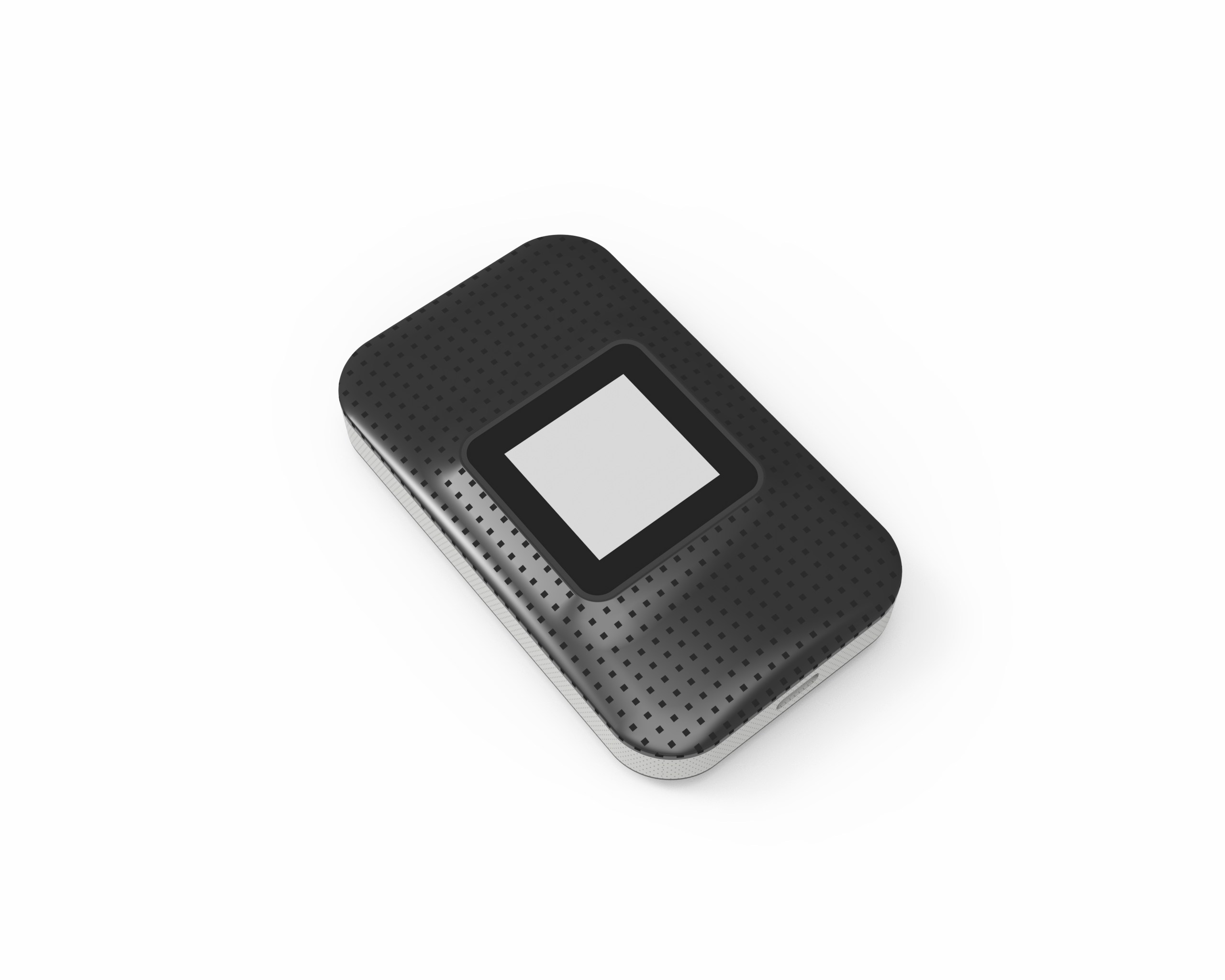

| Basical Information | Model Name | MF982 （4G MIFI） |
| Dimension | 98.3x59x18.4mm | |
| Weight | <95.8g | |
| Color | White | |
| Air Interface | Technical Standard | Compatible with WCDMA, FDD-LTE,TDD-LTE 802.11 b/g/n/ax |
| Frequency | LTE:1,3,5,7,20,28,38,40,41 W:1,5 | |
| WIFI | 2.4G, WIFI 1*1 MIMO，802.11 b/g/n/ax ；channel：1~13 | |
| Performance | Maximum Data Throughput | LTE CAT 4 LTE 150Mbps/50Mbps |
| Hardware | Receive Diversity | Support Receive Diversity |
| BB Chipset | ZXCP297520V3T | |
| RF Chipset | ZXZP234230 | |
| WiFi Chipset | AIC 8800DW | |
| Memory | 256Mb RAM + 128Mb Nor | |
| T-card | Support | |
| USB Charging | above 5V/1A | |
| USIM/SIM | 3FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal |
|
| Battery | Li-ion Battery 2100mAh/3000mAh | |
| Charging time | <3.5 hours | |
| Working time | 6-8h(2100mAh) 10-12h(3000mAh) |
|
| Standby time | 450h(2100mAh) 700h(3000mAh) |
|
| LCD/LED | 1）Power/Battery Status Indicator 2）4G/3GNetwork Status Indicator 3）WIFI Indicator |
|
| USB | Charge & internet | |
| Antenna | 4G: FPC 2 x 2 4G：2*External Antenna (option) WiFi: PCB，1*1（4G:FPC 2 x 2 4G:2*外置天线（可选） WiFi：PCB，1*1） |
|
| Buttons | POWER，Reset, WPS | |
| Software | UI | WebUI , Mobile WEB UI |
| Charge and discharge management of battery | Battery Indicator,Low power management and so on | |
| SW Update | Local Update,Fota | |
| WIFI Mode | AP | |
| WIFI Security | OPEN & WPA2-PSK & WPA-PSK/WPA2-PSK; | |
| SMS | Support | |
| IPv4 | Support | |
| IPv6 | Support | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/White lis | |
| Data Statistics | Support | |
| VPN Pass Through | PP2P/L2TP | |
| SIM Lock | Support | |
| SNTP | Support | |
| DMZ | Support | |
| HTTP | Support | |
| HTTPS | Support | |
| Data Lock | Support | |
| Environment | Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20° C to +70° C | |
| Humidity | 5%~ 95% |
